Quality Inspection and Analysis
Quality Inspection and Analysis
- 3D Scanning is used widely as most advanced and efficient technique for quality inspection of manufacture dparts.
- Data acquired from 3D scanning of manufacture dpart can be directly compared to the CAD model from which the part was produced.

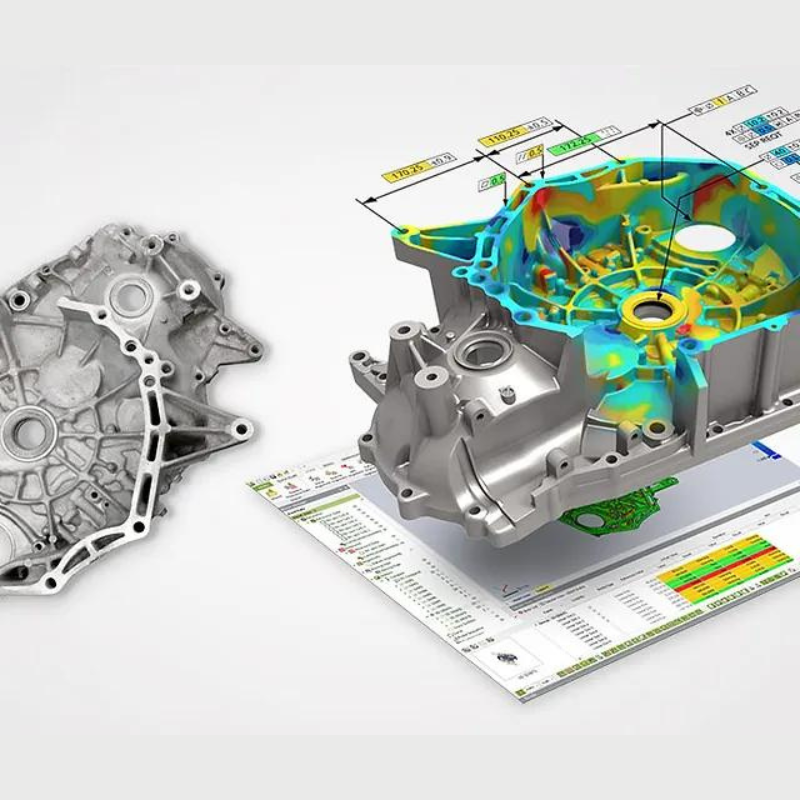

- Advanced quality inspection software have ability to provide 3D colour coded plots with desired tolerance to show basic pass/failareas, 2D cross section profile Campari's on views and also ability to inspect GD & T parameters like parallelism concentricity, circularity etc.
- 3D white light scanner delivers excellent data quality and high accurate measuring results making it ideal for demanding applications in inspection.
Our Inspection Services Include
- Verifying component measurements and tolerances.
- Convert 3D scanned data into 3D design file format (Scan to CAD).
- 3D model verification for additive manufacturing.
- Tolerances & Complex Geometry checks.
- Reports and analysis.
- 3D CAD comparisons and deviation plots.
- Statistical process reports.
